Jumbo Size Laminated Safety Curved Glass Sheet with PVB Film

FOB Reference Price:Get Latest Price
$113.72 - $134.40 / Square Meters | 50 Square Meter/Square Meters (Min. Order)
Color:
Extra White/Clear/Green/ Blue/Euro Grey/Crystal Grey
Customization:
Color, Thickness,Size,Structure (Min. Order: 50 Square Meters)
Customized logo (Min. Order: 50 Square Meters)

More

Customized packaging (Min. Order: 50 Square Meters)
arc length, R value (Min. Order: 50 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Togen
Model Number:
N/A
Function:
Heat Absorbing Glass, Heat Reflective Glass
Shape:
Curve, Flat
Structure:
Solid
Technique:
Clear Glass, Laminated Glass, Tempered Glass
Type:
Float Glass
Warranty:
5 years
Quality Standard:
AS/NZS2208, ASTM C1172, ANSI E971
Max Size:
2600 * 12000 mm
Total Thickness:
6.38-80mm (According to engineering pratical needs )
PVB Film Thickness:
0.38 mm/0.76 mm/0.89 mm/1.52 mm/2.28 mm /3.04 mm
Color:
Extra White/Clear/Green/ Blue/Euro Grey/Crystal Grey
Regular Glass Composition:
3+3, 5+5, 6+6, 6+8, 8+10, 10+10, 10+12, 12+12, 15+15, 19+19 or triple
Supply Ability
Supply Ability:
60000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Endcap; Polywood crate with maximum weight 1.5 tons
Port
Xiamen, China
PRODUCT DETAIL

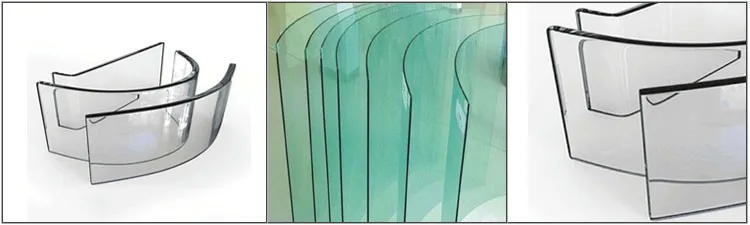

Jumbo Size Laminated Safety Curved Glass Sheet with PVB Film

Glass Item
10 mm Curved Clear Tempered Glass +2.28PVB+10 mm Curved Clear Tempered Glass(length<6000mm)
Monolithic Type
Clear, Tinted, Ceramic Fritted, Coated Curved Glass
Combined Type
1.Curved Tempered Insulated Glass

2.Curved Tempered Laminated Glass

3.Curved Tempered Laminated Insulated Glass
Monolithic Glass Thickness(mm)
5,6
8,10,12
15,19
Minimum Curvature Radius(mm)
1000
1500
2000
Maximum Curvature Radius(mm)
Unlimited
Maximum Processing Size(mm)
2500(arc length)×3200(straight edge)
Minimum Processing Size(mm)
600(arc length)×400(straight edge)
Maximum arch height (mm)
650

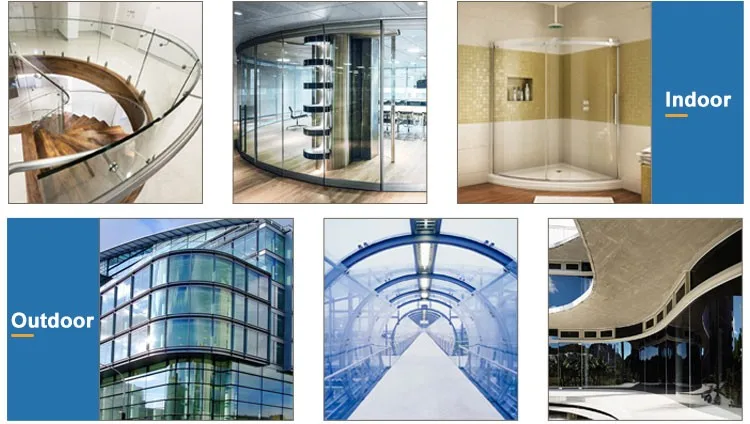

APPLICATION
ADVANTAGE

PVB Laminated glass Features :

1.Holds together when shattered. The PVB interlayer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass.
2.Cyclone resistant
3.Superior UV blockage
4.Excellent sound damping properties
5.Low visible distortion

CERTIFICATES
OUR FACTORY
COMMERCIAL TERM
Place of Origin
Xiamen, Fujian, China
Packing Details
In wooden crates with paper, the crates would be banded by three steel bands, between each two glass packed with PEP elastic film.
Quality Standard
AS/NZS 2208, ASTM C1172, ANSI Z97.1-2009
MOQ
50 square meters
Production Capacity
60000 square meters/month
Sample Policy
Free sample is available
Sample Leadtime
3 working days in case that the sample stock is available, otherwise, sample leadtime will be 14 working days.
Mass Production Leadtime
2-4 weeks
Payment Term
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Note: can be customized according to the given specifications and colors from clients. More requirements and specification, pls feel free to contact with us.
